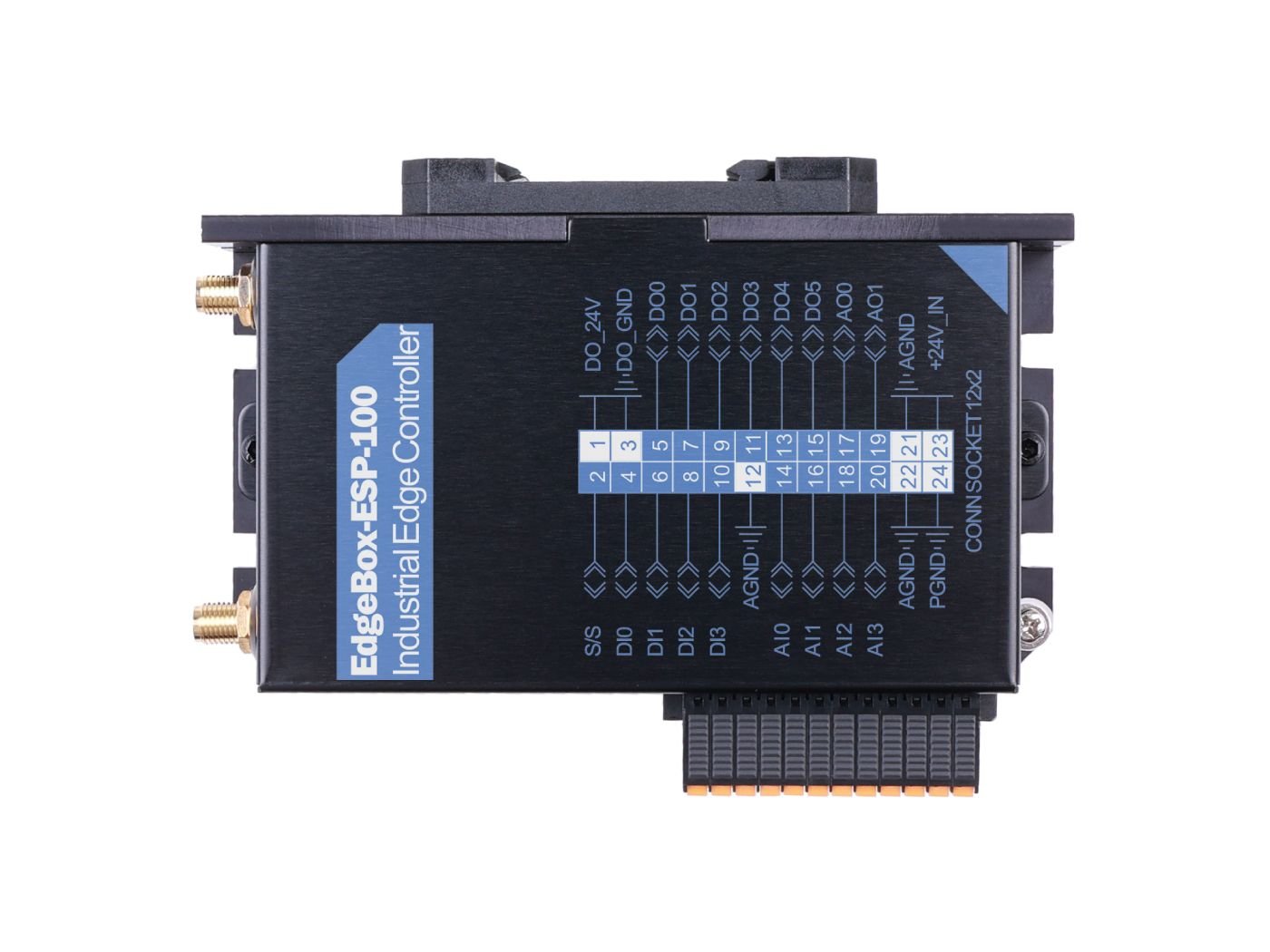

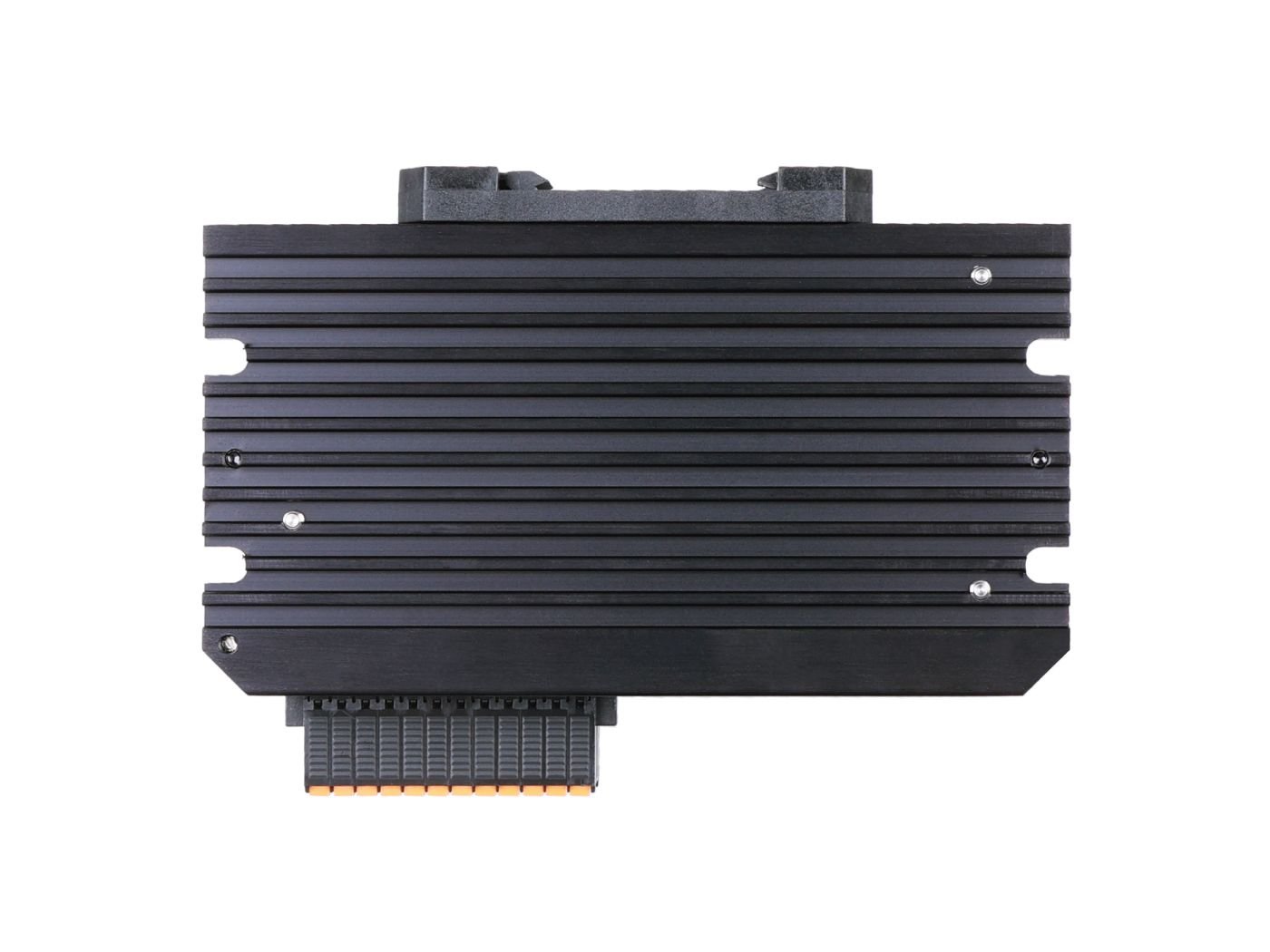

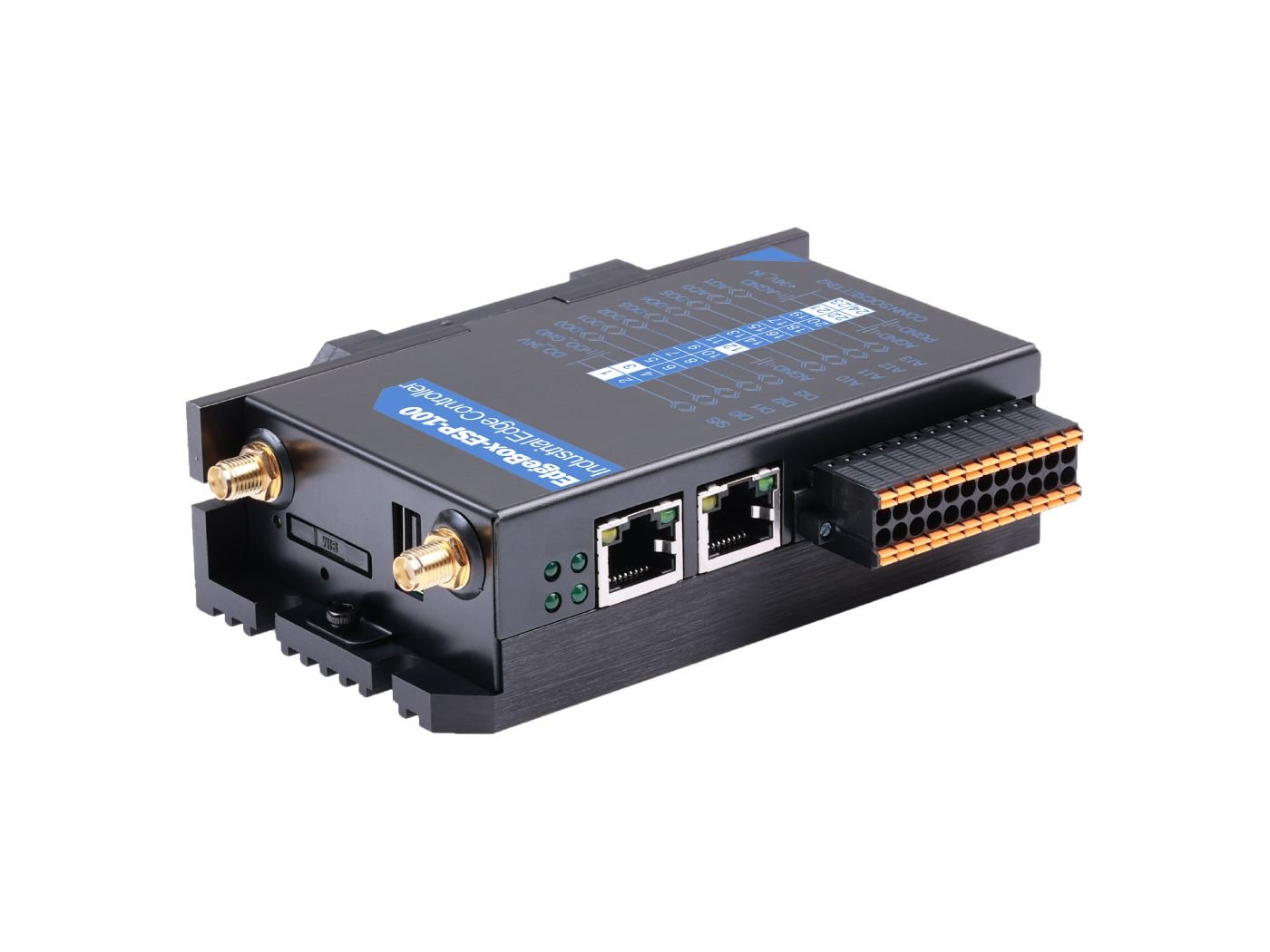

EdgeBox ESP100 Industrial Edge Controller WiFi BLE 4G LTE DIO AIO Ethernet CAN RS485

EdgeBox ESP100 merupakan all in one industrial edge controller berbasis ESP32S3. EdgeBox memiliki desain standar industri baik dari desain framenya yang sudah support din rail maupun perangkat kerasnya.

EdgeBox ESP100 memiliki fitur yang lengkap mulai dari Bluetooth, WiFi, RS485 yang sangat mendukung untuk menerapkan industri 4.0

Fitur :

• • Multi Fieldbus Support : CAN, RS485, Ethernet
  • Multi Wireless Capability : WiFi, Bluetooth, dan Cellular 4G LTE
  • Reliable Hardware Design
  • Relieable Electrical Design
  • IEC 61131-3 Compliant Programs Support (Under Development) Programmable with ESP-IDF

Aplikasi :

• • SCADA
  • Industrial Controller
  • Proportional, Integral, and Derivative (PID) Control Loops
  • Logic Sequencing Control
  • Industrial Gateway

Spesifikasi :

• • Catu Daya : 10.8 ~ 36V
  • CPU : ESP32S3
  • Memori : 512KB + 8MB RAM
  • Storage : 16MB
  • WiFi : On-chip 2.4GHz
  • Bluetooth : On-chip Bluetooth 5.0 BLE
  • Cellular : 4G – A7670G SIMCom LTE Cat 1 Module
  • LoRa : Supported
  • Ethernet : 1x 100M RJ45
  • USB : 1x USB 2.0 Tipe-A
  • CAN BUS : 1x CAN BUS (Isolated)
  • Serial : 1x RS485 (Isolated)
  • Digital Input : 4 (Isolated) (24VDC)
  • Digital Output : 6 (Isolated (24VDC)
  • Analog Input : 4 (Isolated), Input : 0 ~ 20mA, 0 ~ 10V Optional
  • Analog Output : 2 (Isolated), Output : 0 ~ 5V
  • RTC : RTC
  • Encryption Chip : Atecc608a (Optional)
  • Suhu Operasi : -20°C ~ +60°C
  • Certification : RoHS, CE, FCC, UKCA

Dokumen :

1. User Manual (Link)
