reBot Arm B601-RS Assembled Bundle with Power Adapter Kit G-Clamp

Kode Produk 642-756

reBot ARM B601-RS merupakan kit lengan robot 6+1 DoF (Degrees of Freedom) yang dirancang sepenuhnya 100% Open-source. Robot ARM ini dioptimalkan khusus untuk pengembangan Physical AI / Embodied AI, riset robotika tingkat lanjut, teleoperasi serta otomasi laboratorium dan industri ringan dengan biaya yang jauh lebih terjangkau.

reBot ARM B601-RS menggunakan motor aktuator RobStride series yang menawarkan torsi tinggi, peregarakan halus, dan transparansi gaya untuk manipulasi berbasis sentuhan.

Fitur:

• • Built for Physical AI: Affordable 6+1 DoF Robotic ARM for Sim-to-real Learning
  • Completely Open: Hardware, Software, CAD, SDK, BOM, and Algorithms Included
  • Learn Faster: Comprehensive Tutorials from Assembly to Deployment
  • Always Improving: Free Algorithm Updates, Demos, and Learning Resources
  • Precision Motion: +- 0.1mm Repetability Powered by RobStride Dynamics Motors
  • Robotics Ecosystem: Compatible with ROS, NVIDIA Isaac Sim, LeRobot, Pinocchio
  • More Robotics for Less: Professional Capabilities at an Accessible Price

Aplikasi:

• • Learn & Build Robotics Easily
  • Research & Laboratory Automation

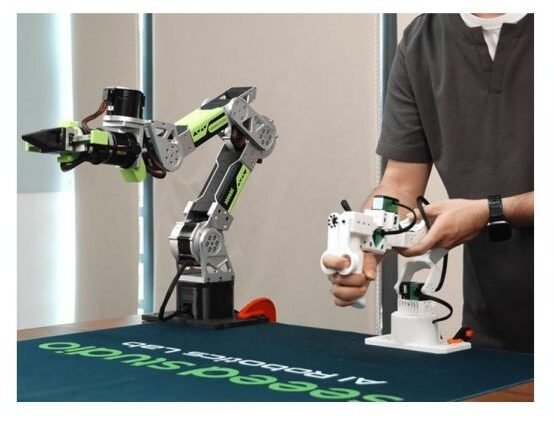

  • Teleoperation & Physical AI
  • Industrial Automation & Logistics
  • Your Physical AI Project Deserves the Spotlight

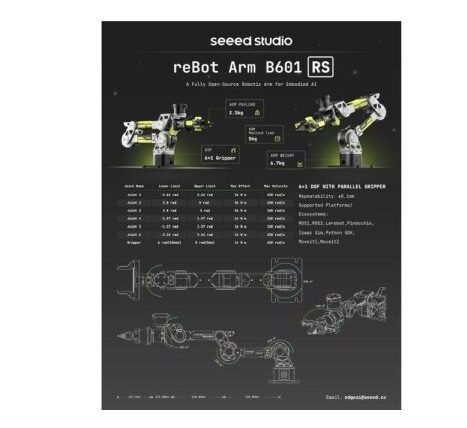

Spesifikasi:

• • Degrees of Freedom (DoF): 6+1
  • Reach: 754.7mm, 587.5mm (without gripper)
  • Payload: 2.5kg (Rated Load), 5kg (Maximum Load)
  • Joint Range of Motion:
    • J1: +- 150°
    • J2: 220° – 0°
    • J3: 220° – 0°
    • J4: +- 90°
    • J5: +- 90°
    • J6: +- 180°
    • Gripper: 345° – 0°
  • Repeatability: 0.1mm
  • Servos: 3x ROBSTRIDE 06, 4x ROBSTRIDE 00
  • Operating Temperature: -20° ~ 50°
  • Power: 48VDC 15A
  • Support: ROS1, Moveit1, ROS2, Moveit2, Python, Lerobot, Isaac Sim, Pinocchio

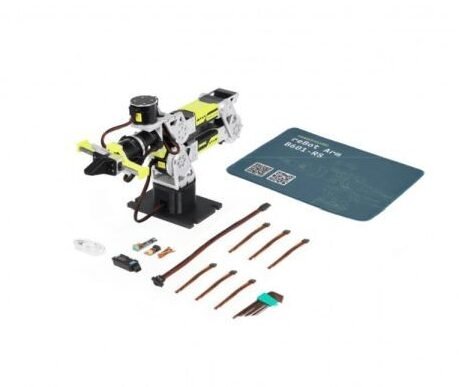

Paket Penjualan:

1x Assembled Robotic Arm (with gripper)
1x RobStride USB-CAN Driver Board
1x CANABLE
1x XT30 2 + 2 Power Separation Board
1x Hex Key Wrench Set
1x Mouse Pad
1x Wire Kits

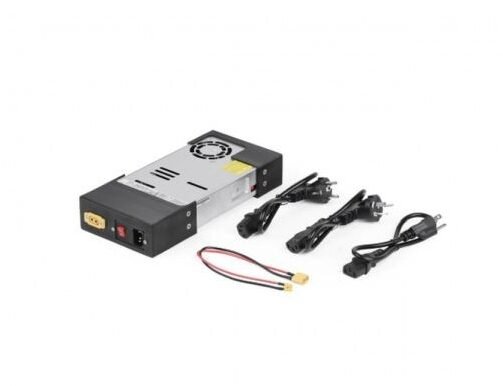

1x Power Adapter for reBot ARM B601-RS
1x G-Clamp
