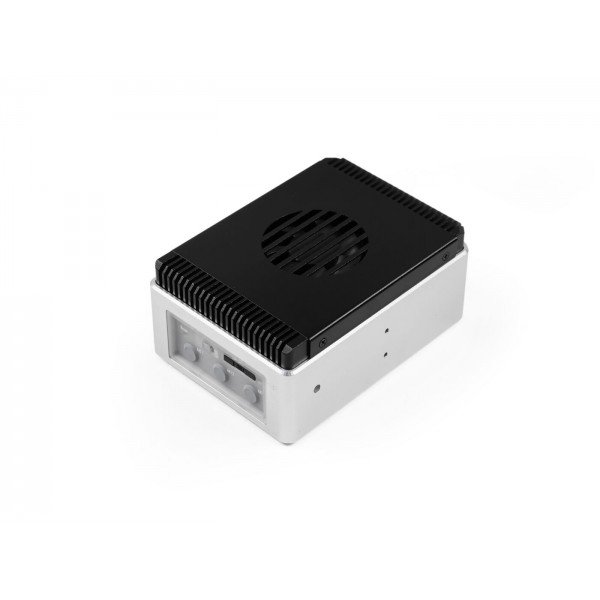

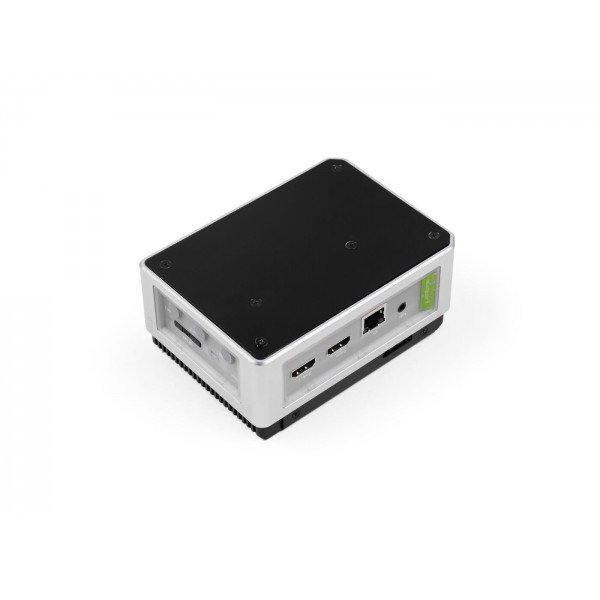

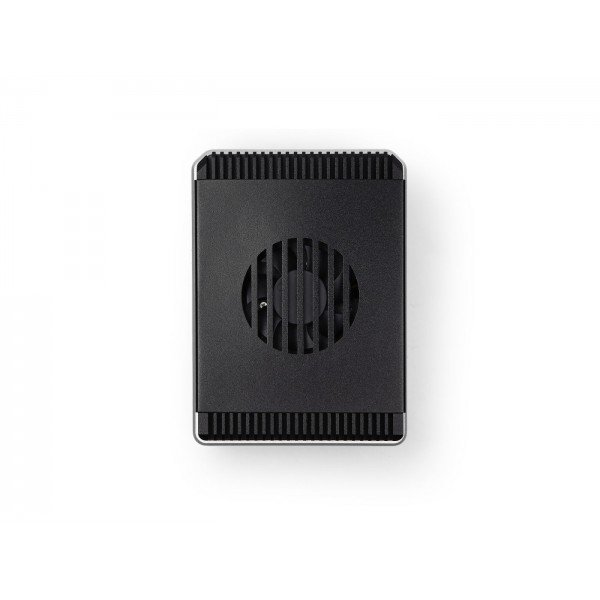

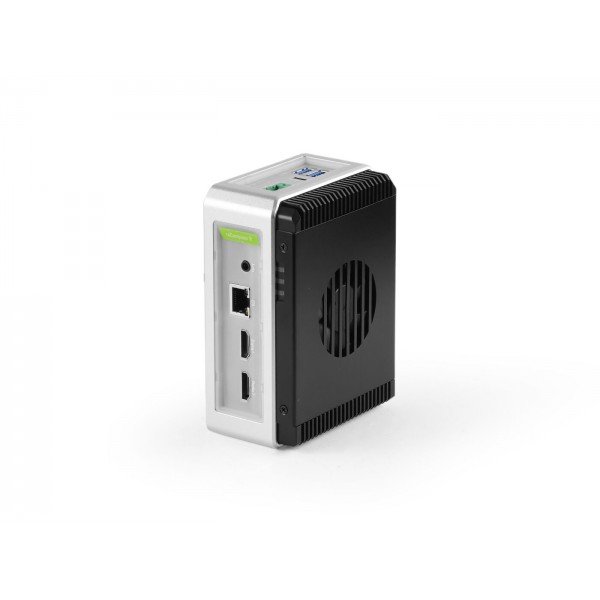

reComputer AI Industrial R2145-12 Raspberry Pi Industrial Edge AI Raspberry Pi CM5 Hailo-8 AI 26TOPS 16GB RAM 32GB eMMC

reComputer AI Industrial R2145-12 adalah industrial edge AI computer kelas profesional yang dirancang untuk menjalankan AI langsung di lapangan (edge computing) tanpa bergantung ke cloud.

Didukung oleh kombinasi Raspberry Pi CM5 + AI accelerator Hailo-8 (hingga 26 TOPS), perangkat ini mampu menjalankan computer vision, analitik video, dan inferensi AI secara real-time dalam satu box yang compact dan tahan industri.

Aplikasi:

• Smart Factory
• AI Surveillance
• Machine Vision
• IoT + AI Gateway

Fitur:

• Powerfull Performance with Raspberry Pi CM5 Module
• AI-Optimized Computing up to 26 TOPS
• Rich Connectivity
• Advanced Video Processing
• Enhanced Industrial Reliability

Spesifikasi:

General Paramaters:

• CPU & GPU: Raspberry Pi Compute Module 5, 2.4GHz quad-core 64-bit Arm Cortex-A76 & VideoCore VII GPU
• AI Processor: Hailo-8 M.2 Acceleration Stick, 26 Tera-Operations Per Second
• Memory & Storage: 16GB RAM, 32GB eMMC
• Operating System: Raspbian, Debian
• Ingress Protection: IP40
• Heat Dissipation: Heatsink with Fan
• Reliability: Hardware Watchdog, High Accuracy RTC
• Security: Encryption Chip TPM2.0/ATECC608A (Optional)
• Enclosure: Aluminum Alloy Casing with PC Side Panels
• Operating Temperature: -20°C ~ +65°C
• Operating Humidity: 10 ~ 95%RH
• Dimensi: 130 x 93 x 55.5mm

Interfaces:

• Ethernet & USB: 1x 10/100/1000 Mbps Ethernet (RJ45); 2x USB 3.2 (USB-A), 1x USB 2.0 (USB-C for Debug/OS Updates)
• Display & Audio: 2x HDMI 2.0 Ports (Standard); 1x 3.5mm Audio Jack
• Expansion Slots: 1x PCIe 3.0 to M.2 slot (M-key 2242, occupied by Hailo-8 AI accelerator); 1x Mini-PCIe for 4G, 1x SIM Card Slot
• LED & Buttons: 3x LEDs (Power/ACT/4G); 1x Reset Button, 1x Boot Switch
• Wireless Communication: 2.4/5.0 GHz Wi-Fi (On-chip Wi-Fi 5), BLE 5.0 (On-chip BLE 5.0), 4G LTE (Optional), 3x Antenna Holes

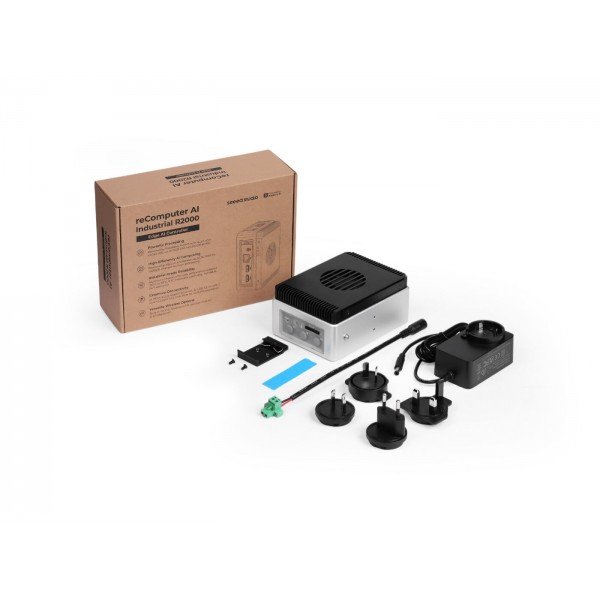

Paket Penjualan:

1x reComputer AI Industrial R2000
1x DIN-rail clip
1x Screw Pack
1x DC Power Female Jack to Screw Terminal Adapter
1x 12V/3A Power Adapter (with 4 interchangeable adapter plugs)
1x User Manual

Dokumen:

1. reComputer User Manual (Link)
2. Seeed reComputer AI R Series Flyer (Link)
3. [Wiki] Getting Started with reComputer AI Industrial R2135 Series (Link)
