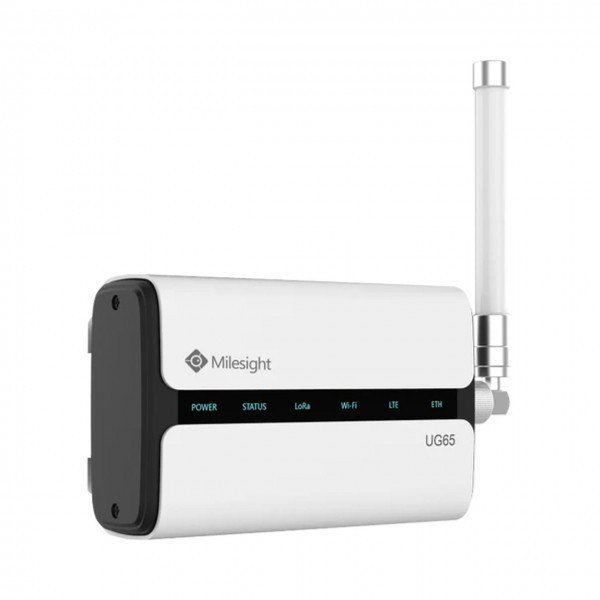

UG65 Semi-industrial LoRaWAN Gateway with Cellular 4G

UG65 merupakan gateway LoRaWAN indoor 8-channel yang dirancang untuk aplikasi IoT. Gateway ini menggunakan chip SX1302 dan sudah menggunakan prosesor Quad-core berkinerja tinggi. UG65 mampu mendukung koneksi lebih dari 2000 node secara bersamaan. Selain itu, juga support multiple backhaul: Ethernet dan WiFi.

Selain itu, gateway ini juga sudah support jaringan seluler 4G.

Fitur:

• • IP65 Rating
  • NXP Quad-Core Processor
  • Semtech SX1302 LoRa Chip
  • Multiple Backhaul Connectivities
  • Support Seluler 4G
  • Compatible with Multiple Network Servers
  • Global LoRaWAN Frequency Plans

Hardware System:

• • CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
  • Memory: 512 MB DDR4 RAM
  • Flash: 8GB eMMC

LoRaWAN:

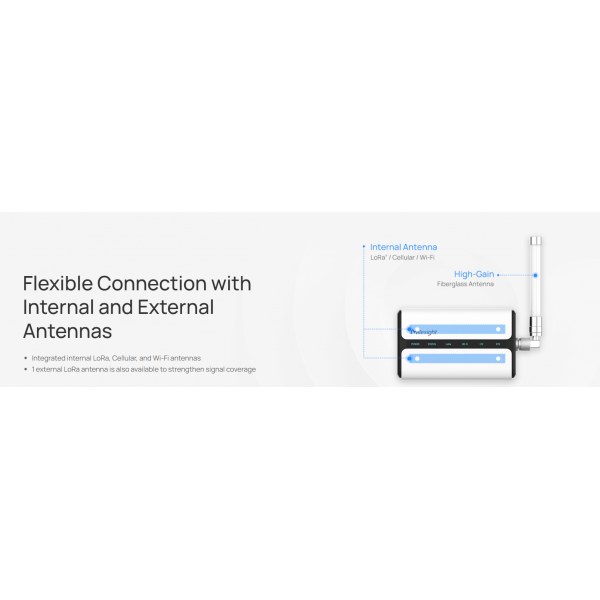

• • Antenna: 2x Internal Antennas + 1x 50 Ohm N-Female External Connector
  • Channel: 8 (Half/Full-duplex)
  • Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1,2,3,4
  • Sensitivity: -140 dBm Sensitivity @292 bps
  • Output Power: 27 dBm Max
  • Protocol: V1.0 Class A/Class B/ Class C and V1.0.2 Class A/Class B/Class C

Ethernet Interface:

• • Port: 1x RJ45 (PoE PD Supported)
  • Physical Layer: 10/100/1000 Base-T (IEEE 802.3)
  • Data Rate: 10/100/1000 Mbps (Auto-Sensing)
  • Interface: Auto MDI/MDIX
  • Mode: Full or Half Duplex (Auto-Sensing)

WiFi Interface:

• • Antenna: Internal Antenna
  • Standards: IEEE 802.11 b/g/n, 2.4GHz
  • Mode: AP or Client Mode
  • Security: WPA/WPA2 Authentication, WEP/TKIP/AES Encryption
  • Tx Power:
    • 802.11b: 18 dBm +/- 2.0 dBm (11 Mbps)
    • 802.11g: 15 dBm +/- 2.0 dBm (6 Mbps)
    • 802.11n@2.4GHz: 14 dBm +/- 2.0 dBm (MCS0_HT20)
    • 802.11n@2.4GHz: 14 dBm +/- 2.0 dBm (MCS7_HT20)
    • 802.11n@2.4GHz: 13 dBm +/- 2.0 dBm (MCS0_HT40)
    • 802.11n@2.4GHz: 13 dBm +/- 2.0 dBm (MCS7_HT40)

Cellular Interface:

• • Supports: 2G, 3G, dan 4G
  • Antenna: Internal Antenna
  • SIM Slot: 1 (mini SIM-2FF)
  • TX Power: Class 3 (23 dBm +- 2 dB)

Others:

• • Reset Buttons: 1x RST
  • Console Port: 1x Type-C
  • LED Indicators:
    • 1x POWER
    • 1x STATUS
    • 1x LoRa
    • 1x Wi-Fi
    • 1x LTE
    • 1x ETH
  • Built-in: Watchdog, RTC, Timer
  • Power Connector: 1x DC Male Jack Connector

Software:

• • Network Protocols: PPPoE, SNMP v1/v2c/v3, TCP, UDP, DCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, MQTTS, BACnet/IP, Modbus TCP, Modbus RTU over TCP, etc
  • VPN Tunnel: OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN/WireGuard
  • Firewall: ACL/DMZ/Port Mapping/MAC Binding/URL Filter
  • Management: Web, CLI, SMS, On-demand Dial Up, DeviceHub, Milesight IoT Cloud
  • Reliability: WAN Failover
  • App: Python SDK, Node-RED

Power Supply and Consumption:

• • Power Input: DC Jack Connector for 9 ~ 24DC, 1x 802.3 af PoE Input
  • Power Consumption: Typical 2.9W, Max 4.2W

Physical Characteristics:

• • Ingress Protection: IP65
  • Dimensi: 180 x 110 x 56.5 mm

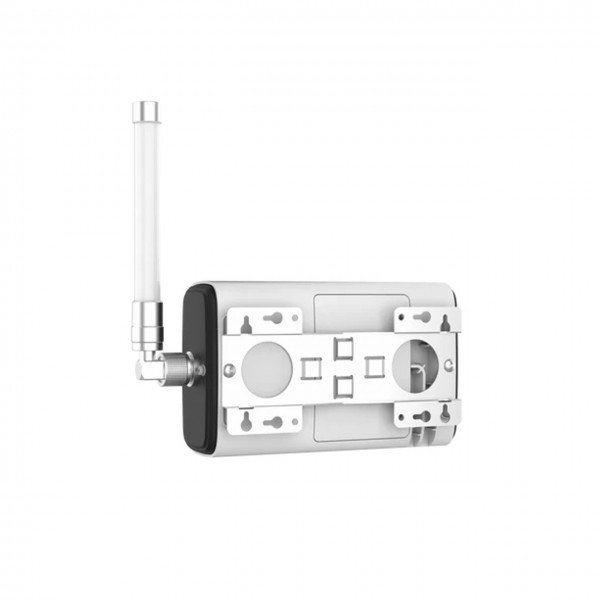

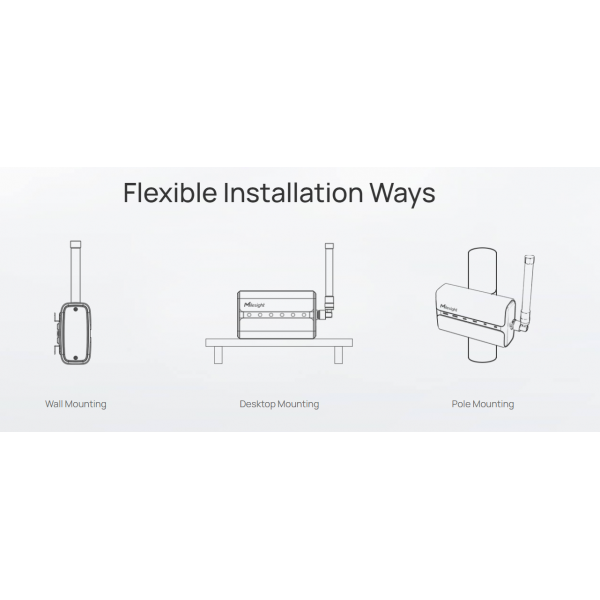

  • Installation: Desktop, Wall or Pole Mounting

Environmental:

• • Operating Temperature: -40°C ~ +70°C
