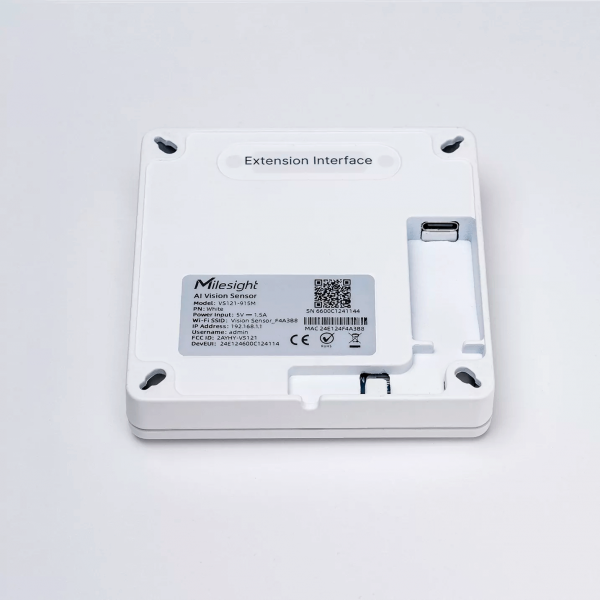

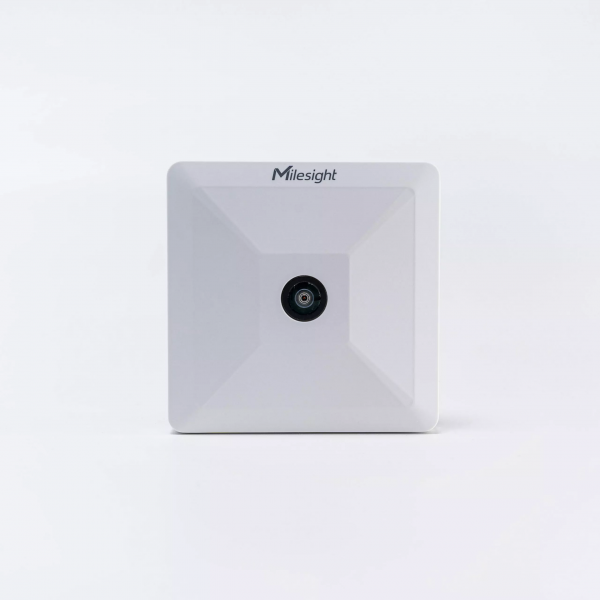

VS121-P AI Workplace Occupancy Sensor High Ceiling Mount

Milesight VS121-P merupakan sensor berbasis LoRaWAN untuk mendeteksi orang yang dapat digunakan untuk memantau tingkat hunian (occupancy), utilisasi ruangan secara real-time. Sensor ini sangat ideal digunakan di kantor, ruang meeting, coworking space atau gedung komersial lainnya yang membutuhkan optimasi tata ruang dan efisiensi energi.

Data yang diambil oleh VS121-P tidak melibatkan informasi identitas pribadi dan menjamin 100% perlindungan privasi di sumbernya yang sudah sesuai dengan standar GDPR.

Fitur:

• • 100% Anonymous Detection (Compliant with GDPR)
  • Up to 95% High Accuracy
  • Smart People Flow Analysis
  • Ultra Large Detection Area
  • Maximum 16 Detection Regions
  • Support LoRaWAN Protocol
  • Smart People Flow Analysis
  • Smart U-Turn Detection
  • Device Management & Application Development

Aplikasi:

• • Meeting Room Management
  • Space Utilization Management
  • HVAC System Collaboration
  • Energy Saving
  • Resource Allocation Optimization

Spesifikasi:

• • Power Supply: 1.5VDC / 2A by Terminal Block, 2.802.3af PoE
  • Power Consumption: 3.5W (DC), 4.5W (PoE)
  • Operating Temperature: -5°C ~ +55°C
  • Storage Temperature: -20°C ~ +60°C
  • Relative Humidity: 0 ~ 95% (Non-condensing)
  • Color: White
  • Installation: Ceiling Mounting
  • Regulatory: CE, FCC, RoHS
  • Dimensi: 85 x 85 x 30mm

People Counting:

• • Field of View: 129.4° Horizontal, 68.4° Vertical
  • Detection Rate: Region Counting (up to 95%), Line Crossing Conting (up to 95%), People Flow Analysis (up to 98%)
  • Installation Height: 5m ~ 7m for Wider Recognition Area
  • Full Monitored Area: 126 m2 (L = 18m, W = 7m, H = 7m)

Ethernet Transmission:

• • Ethernet Port: 1x RJ4 10/100 Mbps (PoE PD)
  • Network Protocol: HTTP, RTSP, NTP, SSH, etc

Other Interfaces:

• • Power Input: 2-pin 3.5mm Terminal Block
  • DI/DO: 1/1
  • Serial Interface: 1x RS485 (Under Development)
  • Button: 1x Reset Button
  • LED Indicators: 1x Status

Dokumen:

1. Datasheet (Link)
2. User Guide (Link)
3. Whitepaper (Link)
4. Payload Decoder (Link)
5. Firmware & SDK Download (Link)
